IKONIO: Frequently Asked Questions




Contents

Where can I find the user manual?

You can find the user manual at teufelaudio.com/operating-instructions. It’s best to use the search field there.

back to overview

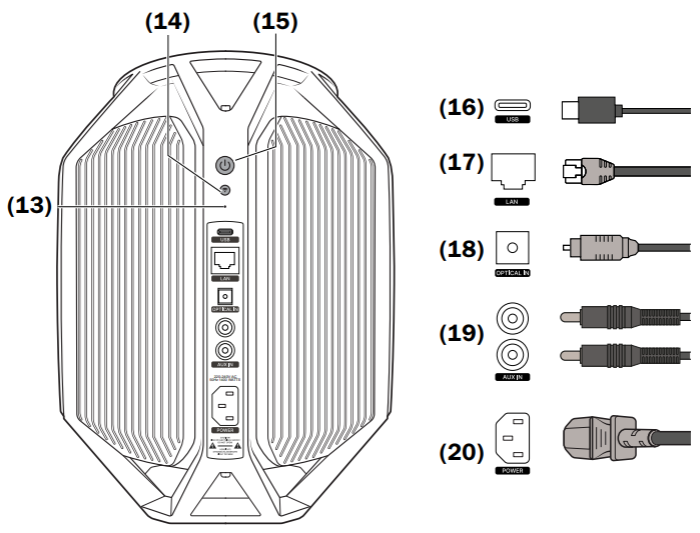

What can I connect to the IKONIO?

  • USB-C input socket (16): Service or maintenance port
  • LAN input socket (17): For a wired connection to your network or router.
  • OPTICAL in (18) – For connecting digital audio sources, such as a TV or a game console with an optical audio output
  • AUX IN (19): For connecting analog audio devices, such as a CD player, turntable (with built-in preamp), or another audio device with analog output.
  • POWER (20): Connection for the included power cable.

back to overview

Can I also mount the IKONIO on a stand?

Yes, the best option is to use the K&M stand for your IKONIO. You can find it in our webshop.

back to overview

What should I consider when connecting a TV to the IKONIO?

Connect the TV via OPTICAL IN and set the digital audio format on the TV to PCM in the audio settings. Formats like Dolby Digital or Dolby Atmos cannot be processed via the optical input.

Note: The IKONIO is primarily designed as a streaming speaker. For best compatibility, we therefore recommend outputting a PCM signal.

back to overview

Is there an app for control?

To control the IKONIO, please use the  Teufel Home App (available in the Play Store / App Store).

back to overview

Do I need to connect to the internet?

The IKONIO can also be used without the app or a Wi-Fi connection, for example via Bluetooth®. However, control via the Teufel Home App is only possible with an existing internet connection.

back to overview

How do I establish an internet connection?

Connecting via LAN (Ethernet)

  1. Connect the IKONIO’s LAN port to your router or network switch.
  2. Turn on the speaker.
  3. The IKONIO will connect automatically to the network. No further setup is required.
  4. The status LED lights white once the connection is successfully established.

To use the full functionality of the IKONIO, please use the Teufel Home App.

Connecting via Wi-Fi

The IKONIO is set up via the Teufel Home App.

  1. Download the Teufel Home App.
  2. Turn on the IKONIO.
  3. The IKONIO automatically switches to Wi-Fi setup mode.

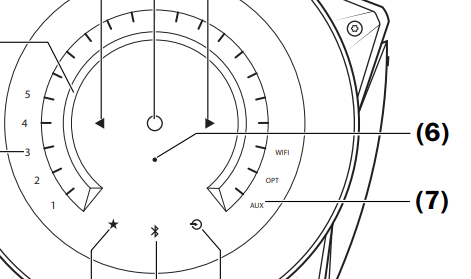

  4. The network status LED (6) blinks white.
  5. If the speaker is not in Wi-Fi setup mode, press the setup button on the back.
  6. Then follow the instructions in the Teufel Home App. More information → Teufel Home App: Setup of a Teufel Home product (MOTIV HOME, STEREO M 2 / L 2)

back to overview

What features does the Teufel Home App offer for the IKONIO and is multiroom possible?

With the Teufel Home App, you set up your IKONIO and manage numerous speaker functions. These include:

  • Setting up the Wi-Fi connection
  • Firmware updates
  • Stereo pairing of two IKONIO speakers
  • Playback control (play, pause, next track, previous track)
  • Volume and equalizer settings
  • Dynamore® settings
  • Adjusting LED brightness
  • Auto on and auto off functions
  • Setting up streaming services (e.g. Spotify or Tidal)
  • Using internet radio via TuneIn

Additionally, the IKONIO supports multiroom systems via AirPlay and Google Cast. This allows you to use it together with compatible speakers and devices from other manufacturers in a shared multiroom system.

Important: Integration into existing Teufel Streaming or Raumfeld systems is not possible for technical reasons.

More information:

What does the IKONIO status LED indicate?

The network status LED shows the current connection status of the speaker:

  • White: The IKONIO is connected to the network.
  • White blinking: The IKONIO is in Wi-Fi setup mode.
  • Red: There is a connection problem.

The brightness of the LED can be adjusted via the Teufel Home App.

back to overview

How do I install an update?

To perform the update, select your IKONIO in the Teufel Home App, then go to "Settings," scroll down in the product view to "Technical Details," and tap on "Firmware Version." Once the update is available for your product, you can start it here.

Here you can find the latest update: IKONIO Firmware Update

back to overview

What is Dynamore® Ultra?

In the Teufel Home App, you can choose from three different configuration options for Dynamore® Ultra.

What can the Dynamore® and Dynamore® Ultra technologies do?

Immersive

In Immersive mode, a single IKONIO sounds similar to a high-quality stereo system. The sound dispersion is very wide but always remains natural.

Omnidirectional

In Omnidirectional mode, the IKONIO radiates evenly in all directions. Ideal if it is placed in the middle of the room, you move around the room, and want to enjoy the same sound at every listening position.

Mono

In this mode, Dynamore® Ultra is deactivated. The IKONIO radiates sound only forward. In a stereo setup, the left IKONIO plays the left channel, and the right IKONIO plays the right channel.

back to overview

How do I connect two IKONIO speakers as a stereo pair?

With stereo pairing, you can use two IKONIO speakers as a true stereo system. One speaker takes over the left audio channel and the other the right audio channel. This creates true stereo sound with a significantly wider soundstage.

Setting up a stereo pair

  1. First set up both speakers separately in the Teufel Home App.
  2. Open the settings of one of the speakers.
  3. Select the function Create Stereo Pair.
  4. Follow the instructions in the app.
  5. Specify which speaker should play the left and which the right channel.

Canceling a stereo pair

Press and hold the Setup button on both speakers for at least 8 seconds or perform a factory reset on both devices.

back to overview

How do I reset the IKONIO to factory settings?

Resetting to factory settings can be helpful if there are problems during setup, network connection issues, or after canceling a stereo pairing. After the reset, the speaker will be restored to its original delivery state.

Resetting to factory settings will delete not only the list of saved Bluetooth devices but also all system configuration settings.

How to perform a factory reset:

  1. Turn on the IKONIO.
  2. Locate the RESET button (13) on the back of the speaker.
  3. Press the RESET button with a bent paperclip and hold it for at least 8 seconds until the device restarts.
  4. The IKONIO will now be reset to factory settings.

After resetting:

  • Wi-Fi will be selected again as the default source.
  • Setup must be performed again via the Teufel Home App.
  • All saved system settings will be deleted.
  • The list of paired Bluetooth devices will be removed.

back to overview

How do I clear the Bluetooth list?

You clear the Bluetooth list by resetting the device to factory settings.

back to overview

I can’t hear anything although music is playing. What can I do?

Check the following points:

  • Check if the correct source is selected (Wi-Fi, Bluetooth, AUX, or OPTICAL).
  • Increase the volume directly on the speaker.
  • Increase the volume on the playback device, for example, smartphone or tablet.
  • On Android devices, an active volume limiter may reduce playback. Try disabling it temporarily.
  • Check if the speaker is still connected to the playback device.
  • Make sure the IKONIO is selected as the output device.
  • Bluetooth connections may experience interference from other radio devices.
  • If necessary, test the speaker in a different location.

back to overview
