If you want to restore (repair) the firmware of a Teufel Streaming/Raumfeld device, please follow these instructions. Personal settings are retained during the restore process.
If you want to completely delete personal data on the device, use the reinstallation option.
Below are instructions on how to restore the firmware for the following devices:
Teufel Streaming devices of the 3rd generation (all devices with Teufel logo on the front except Teufel Soundbar/Sounddeck Streaming and Teufel Connector)
You can recognize the 3rd generation by the existing LED strip
Under the following link you will find the file "speaker3.img", which you should save on an empty USB stick (max. 4 GB, FAT32 formatted)
> https://updates.raumfeld.com/repair/speaker3.img
For the Teufel Streamer the following link applies > https://updates.raumfeld.com/repair/connect3.img
Then please proceed as follows:
- First switch off the speaker by either turning the power switch on the rear panel to OFF or disconnecting the power supply, depending on the device.
Please carry out this step even if the device is (supposedly) already switched off. - Then insert the USB stick into the USB port of the active speaker
- Now insert a paper clip into the reset hole on the back of the active speaker.
- Keep the paper clip pressed while you turn the power on by changing the switch to ON or by connecting the unit to the rear panel.
- Please hold the paper clip for another 10 seconds
The installation process is now in progress and can take up to 5 minutes. During the process, various stages are run through, which can be recognized by the LEDs:
- Firmware is loaded (LED strip flashes first left, then right; about 1 minute)
- Firmware is installed (LED strip flashes alternately every second; about 3 minutes)
- Device is restarted (LED strip flashes left, then right; about 1 minute)
- Installation is complete (device can now be set up again)
If the LED strip flashes alternately hectically, the image was not found or is incompletely loaded. Then download the firmware again and start again with step 1.
Teufel Soundbar/deck Streaming, Teufel X Rosenthal and all devices of the 2. generation (without Raumfeld/Teufel Connector)
You can recognize 2nd generation devices by the 2 LEDs on the front of the device (no external WLAN antenna).
Under the following link you will find the firmware file for your device. Please save it on an empty USB stick (max. 4 GB, FAT32 formatted)
> https://updates.raumfeld.com/repair/speaker2.img
Then please proceed as follows:
- First disconnect the power cable of the system. Please carry out this step even if the unit is already switched off.
- Then insert the USB stick into the USB port of the active speaker
- Now insert a paper clip into the reset hole on the back of the active speaker.
- Keep the paper clip pressed while you turn the power on by changing the switch to ON or by connecting the unit to the rear panel.
- Please hold the paper clip for another 10 seconds
The installation process is now in progress and can take up to 5 minutes. During the process, various stages are run through, which can be recognized by the LEDs:
- Firmware is loaded (the left LED lights up, then the right one; about 1 minute)
- Firmware is installed (both LEDs flash alternately every second; about 3 minutes)
- Device is restarted (left LED lights up, then the right one; about 1 minute)
- Installation is complete (left LED lights up, right LED flashes every 5 seconds)
If the LED strip flashes alternately hectically, the image was not found or is incompletely loaded. Then download the firmware again and start again with step 1.
Raumfeld 1st generation devices (all Raumfeld devices with external WLAN antenna)
You can recognize 1st generation devices by the outer WLAN antenna.
Under the following link you will find the file "speaker.img", which you should save on an empty USB stick (max. 1 GB, FAT32 formatted)
> https://updates.raumfeld.com/repair/speaker.img
Then please proceed as follows:
- First switch off the speaker by either turning the power switch on the rear panel to OFF or disconnecting the power supply, depending on the device.
Please carry out this step even if the device is (supposedly) already switched off. - Then insert the USB stick into the USB port of the active speaker
- Now insert a paper clip into the reset hole on the back of the active speaker.
- Hold down the paper clip while you turn on the power using the power switch on the back and then the standby button on the front.
- Please hold the paper clip for another 10 seconds
The installation process is now in progress and can take up to 5 minutes. During the process, various stages are run through, which can be recognized by the LEDs:
- Firmware is loaded (the left LED lights up, then the right one; about 1 minute)
- Firmware is installed (both LEDs flash alternately every second; about 3 minutes)
- Device is restarted (left LED lights up, then the right one; about 1 minute)
- Installation is complete (left LED lights up, right LED flashes every 5 seconds)
If the LED strip flashes alternately hectically, the image was not found or is incompletely loaded. Then download the firmware again and start again with step 1.
Raumfeld Connector (1st or 2nd generation) and Teufel Connector (2nd generator)
Under the following links you will find the firmware file for the connector. Please save it on an empty USB stick (max. 4 GB, FAT32 formatted)
Connector 2nd gen (no external WLAN antenna) > https://updates.raumfeld.com/repair/connect2.img
Connector 1st gene (until 2013, has WLAN antenna) > https://updates.raumfeld.com/repair/connect.img
Then please proceed as follows:
- First disconnect the power cable of the connector. Please carry out this step even if the connector is already switched off.
- Then insert the USB stick into the USB port of the connector.
- Now insert a paper clip into the reset opening on the back of the connector.
- Hold down the paper clip while plugging in the power cable of the connector (Connector 1.Gen - please also press the standby button).
Make sure that the button in the reset opening remains pressed down by the paper clip, so that the paper clip does not slip off. Please keep the paper clip pressed for another 10 seconds.
The installation process is now in progress and can take up to 5 minutes. During the process, various stages are run through, which can be recognized by the LEDs:
- Firmware is loaded (the left LED lights up, then the right one; about 1 minute)
- Firmware is installed (both LEDs flash alternately every second; about 3 minutes)
- Device is restarted (left LED lights up, then the right one; about 1 minute)
- Installation is complete (left LED lights up, right LED flashes every 5 seconds)
If the LEDs flash hectically alternately, the image was not found or is incompletely loaded. Then download the firmware again and start again with step 1.

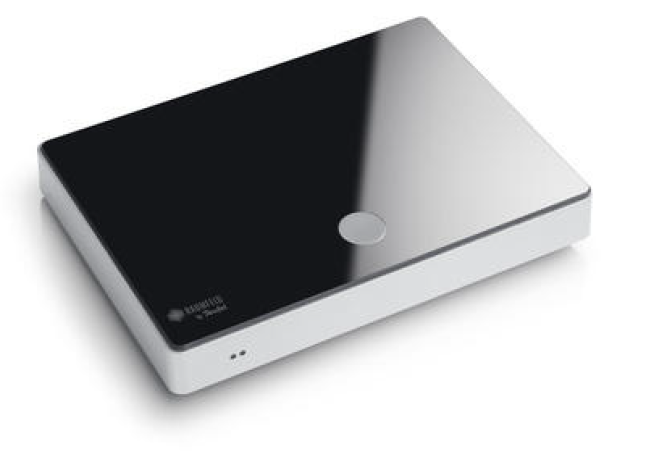

Raumfeld Expand (formerly Base)
Under the following links you will find the appropriate firmware files, which you should save on an empty USB stick (max. 4 GB, FAT32 formatted)
old version
Raumfeld Expand (old designation Base, until 2014) > https://updates.raumfeld.com/repair/base.img
Please proceed as follows:
- First, unplug the Expand and wait 30 seconds.
- Then insert the USB Flash Drive into the upper USB port on the Expand.
- Press and hold the Setup button while plugging the power plug back in to start the Expand.
- Please press and hold the Setup button for another 10 seconds. After a maximum of 30 seconds, the outer and inner LEDs will start flashing alternately.
If the LEDs flash alternately hectically, the image has not been found or is incompletely loaded. Download the firmware again and start again with step 1.
last version
Raumfeld Expand (last version, from 2015) > https://updates.raumfeld.com/repair/base2.img
Please proceed as follows:
- First, disconnect the Raumfeld Expand's power cable.
- Then insert the USB stick into the Expand's USB port.
- Now insert a paper clip into the reset opening on the back of the Expand.
- Hold the paper clip while you plug in the Expand's power cord. Make sure that the button in the reset opening remains pressed down by the paper clip, so that the paper clip does not slip off. Please hold the paper clip for another 10 seconds.
If the LEDs flash alternately hectically, the image was not found or is incompletely loaded. Download the firmware again and start again with step 1.
