Vor allem bei älteren Produkten außerhalb der Garantiezeit kann es leider vorkommen, dass unsere Lagerbestände an Ersatz-Fernbedienungen aufgebraucht sind und wir deshalb keinen Ersatz stellen können. Entschuldigung.
Abhilfe kann hier eine programmierbare Fernbedienung (Universalfernbedienung) aus dem Fachhandel schaffen. In diesem Artikel findest du die IR-Codes einiger Produkte.
Universalfernbedienung
Für die Teufel Produkte CINEBAR PRO, CINEBAR ONE, CINEDECK, CINEBAR LUX, CINEBAR 11 (alle Versionen), Soundbar TRIOS (CS42), CINEBAR DUETT, CINEBAR ULTIMA, CINEBAR 51/52 THX
gibt es eine Universalfernbedienung:
RUWIDO UNIVERSAL Fernbedienung → hier bestellen
IR-Codes

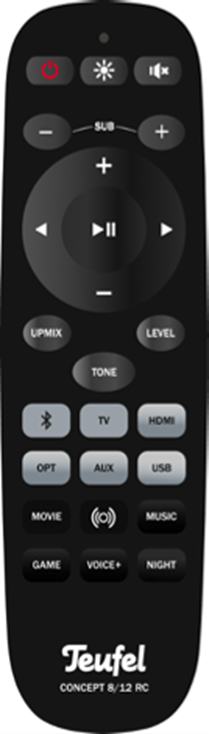

Concept 8/12 RC
| Concept 8/12 RC | Funktion | IR Code |
|
|
Power | 0xE21D |
| Mute | 0xF609 | |
| TV | 0xB14E | |
| HDMI | 0xDB24 | |
| Bluetooth | 0xE01F | |
| AUX | 0xDF20 | |
| Optical | 0xDC23 | |
| USB | 0xDD22 | |
| Sound Mode - Music | 0xB748 | |
| Sound Mode - Movie | 0xBF40 | |
| Sound Mode - Game | 0xD728 | |
| Sound Mode - Voice + | 0xDA25 | |
| Sound Mode - Night | 0xDE21 | |
| Volume + | 0xFA05 | |
| Arrow Left | 0xBC43 | |
| Play/Pause | 0xAB54 | |
| Arrow Right | 0xFE01 | |
| Volume – | 0xB847 | |
| Sub Level Up | 0xE817 | |
| Sub Level Down | 0xA857 | |
| Channel Level Selection | 0xF20D | |
| Surround - Upmix | 0xEF10 | |
| Dim | 0xF708 | |
| Tone | 0xF807 | |
| Dynamore | 0xF10E |

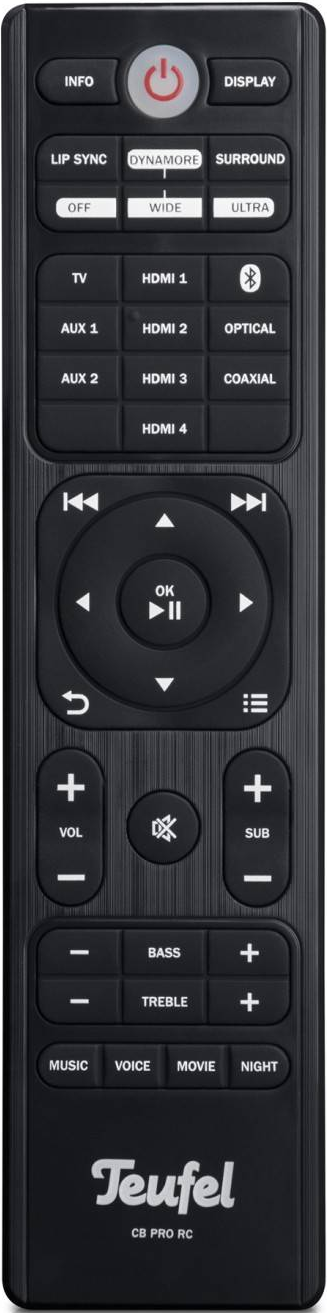

Cinebar Pro
| CB PRO CR | Funktion | IR Code |
|
|
Info | 0xEE11 |
| Power | 0xE21D | |
| Display | 0xF708 | |
| Lip Sync | 0xB54A | |
| Dynamore | 0xF10E | |
| Surround | 0xEF10 |
|
| Dynamore Off | 0xB649 | |
| Dynamore Wide | 0xE619 | |
| Dynamore Ultra | 0xA659 | |
| TV | 0xAF50 | |
| AUX 1 | 0xF906 | |
| AUX 2 | 0xA55A | |
| HDMI 1 | 0xFB04 | |
| HDMI 2 | 0xBB44 | |
| HDMI 3 | 0xEB14 | |
| HDMI 4 | 0xAB54 | |
| Bluetooth | 0xFD02 |
|
| Optical | 0xFC03 | |
| Coaxial | 0xED12 |
|
| Previous | 0xBA45 | |
| Next | 0xEA15 | |
| Arrow Up | 0xAA55 | |
| Arrow Down | 0xF20D | |
| Arrow Left | 0xBC43 | |
| Arrow Right | 0xFE01 |
|
| Back/Return | 0xF807 | |
| Bass | 0xE817 | |
| Bass + | 0xA857 | |
| Bass - | 0xF00F | |
| Treble | 0xB04F | |
| Treble + | 0xE01F | |
| Treble - | 0xA05F | |
| Music | 0xD728 | |
| Voice | 0xDA25 | |
| Movie | 0xBF40 | |
| Night | 0xDE21 |
ULTIMA 25 AKTIV
| ULTIMA 25 AKTIV | Button Nr. | Funktion | IR Code |
| #1 | Power | 0xE21D | |
| #2 | Mute | 0xF609 | |
| #3 | TV | 0xB14E | |
| #4 | Optical | 0xDC23 | |
| #5 | AUX | 0xDF20 | |
| #6 | USB | 0xDD22 | |
| #7 | Bluetooth | 0xE01F | |
| #8 | DAB | 0xC738 | |
| #9 | FM | 0xD52A | |
| #10 | Text Info (only for DAB and FM) | 0xA45B | |
| #11 | Preset 1 (and 4) | 0xF30C | |
| #12 | Preset 2 (and 5) | 0xB34C | |
| #13 | Preset 3 (and 6) | 0xE31C | |
| #14 | Preset List | 0xA35C | |
| #15 | Display Brightness | 0xF708 | |
| #16 | Info | 0xEE11 | |
| #17 | Volume + / Up | 0xFA05 | |
| #18 | Arrow Left | 0xBC43 | |
| #19 | Play/Pause/Select | 0xAB54 | |
| #20 | Arrow Right | 0xFE01 | |
| #21 | Volume – / Down | 0xB847 | |
| #22 | Back/Return | 0xB44B | |
| #23 | Menu | 0xAE51 | |
| #24 | Bass + | 0xE817 | |
| #25 | Bass - | 0xA857 | |
| #26 | Treble + | 0xF00F | |
| #27 | Treble - | 0xB04F | |
| #28 | Sound Mode | 0xBF40 | |
| #29 | Dynamore | 0xF10E | |
| #30 | Upmix | 0xEF10 | |
| #31 | Sound Profile A | 0xEC13 | |
| #32 | Sound Profile B | 0xAC53 | |
| #33 | Sound Profile C | 0xF40B |

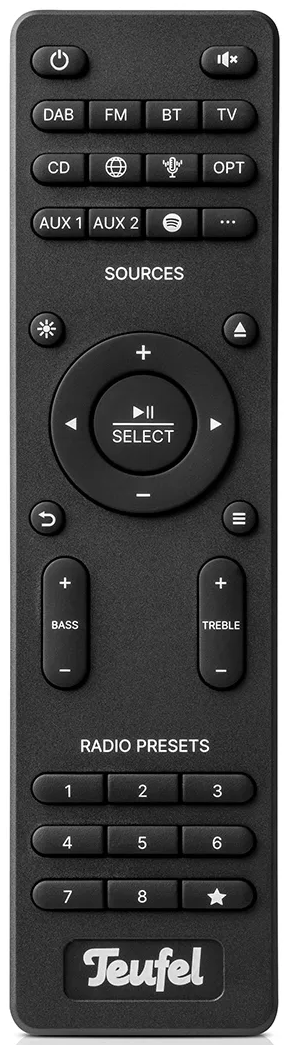

KOMBO 62 Mk2 CD-Receiver
| KB 62 CR | Funktion | IR Code |
| Power | 0xE21D | |
| Mute | 0xF609 | |
| DAB | 0xC738 | |
| FM | 0xD52A | |
| BT | 0xE01F | |
| FM | 0xD52A | |
| CD | 0xA05F | |
| Internetradio | 0xDA25 | |
| Podcast | 0xDE21 | |
| OPT | 0xDC23 | |
| Aux1 | 0xDF20 | |
| Aux2 | 0xDD22 | |
| Spotify | 0xD728 | |
| Other Sources | 0xDB24 | |
| Brightness | 0xF708 | |
| Eject | 0xEE11 | |
| Back/Return | 0xB44B | |
| Menu | 0xAE51 | |
| Volume+ | 0xFA05 | |
| arrow left | 0xBC43 | |
| select / play | 0xAB54 | |
| arrow right | 0xFE01 | |
| Volume- | 0xB847 | |
| Bass+ | 0xE817 | |
| Bass- | 0xA857 | |
| Treble+ | 0xF00F | |
| Treble- | 0xB04F | |
| 1 | 0xF30C | |
| 2 | 0xB34C | |
| 3 | 0xE31C | |
| 4 | 0xA35C | |
| 5 | 0xFD02 | |
| 6 | 0xBD42 | |
| 7 | 0xED12 | |
| 8 | 0xAD52 | |
| * | 0xF50A |

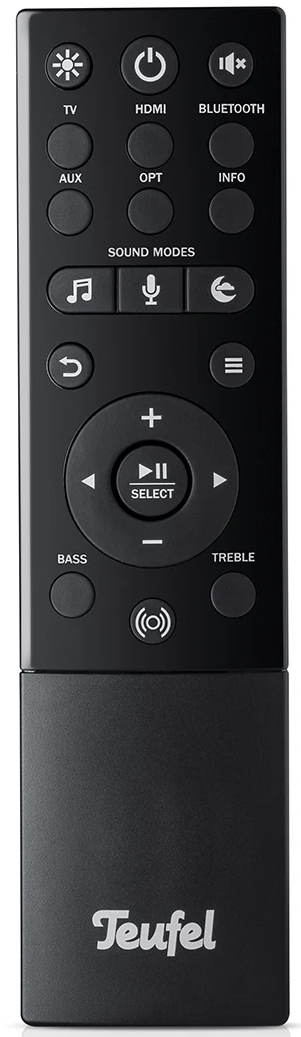

Soundbar CINEBAR 11 Mk2 20
| Fernbedienung CINEBAR 11 | Funktion | IR-Code |
| Brightness | 0xF708 | |
| Power | 0xE21D | |
| Mute | 0xF609 | |
| TV | 0xB14E | |
| HDMI | 0xDB24 | |
| Bluetooth | 0xE01F | |
| AUX | 0xDF20 | |
| OPT | 0xDC23 | |
| Info | 0xEE11 | |
| EQ Normal | 0xBF40 | |
| EQ Voice | 0xDA25 | |
| Night | 0xDE21 | |
| Back / Return | 0xB44B | |
| Menu | 0xAE51 | |
| Volume+ | 0xFA05 | |
| arrow left | 0xBC43 | |
| select / play | 0xAB54 | |
| arrow right | 0xFE01 | |
| Volume- | 0xB847 | |
| Bass | 0xE817 | |
| Treble | 0xB04F | |
| Dynamore | 0xF10E |

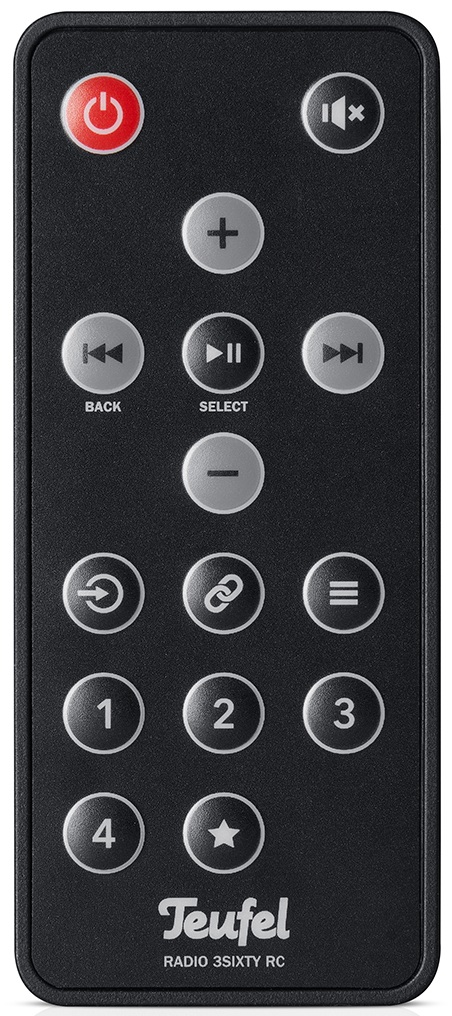

Radio 3SIXTY
Du kannst dein Radio 3SIXTY auch per App steuern.
| Radio 3SIXTY | Funktion | IR Code |
| Power | 0xE21D | |
| Mute | 0xE11E | |
| Volume+ | 0xE718 | |
| Back/Return | 0xBA45 | |
| Play / Pause / Select | 0xBD42 | |
| next | 0xEA15 | |
| Volume- | 0xB946 | |
| BT Link | 0xFD02 | |
| Source/Quelle | 0xFC03 | |
| Menu | 0xAE51 | |
| 1 | 0xFB04 | |
| 2 | 0xBB44 | |
| 3 | 0xEB14 | |
| 4 | 0xAB54 | |
| * | 0xED12 |
