The T 10 Mk2 is an active 10-inch subwoofer from Teufel. It is suitable for home theater and stereo systems and can be operated wired or wirelessly. The T 10 Mk2 can be used as both a front-firing and down-firing subwoofer.
Compared to the previous model, the T 10 Mk2 offers a more compact enclosure, FSC-certified wood, an extended deep bass range, and adjustable filters.
Contents
- Where can I find the user manual?
- Where can I find the technical specifications?
- What is the difference compared to the T 10 (previous model)?
- What is the difference between down-firing and front-firing operation?
- With which products can I wirelessly pair the T 10 Mk2 subwoofer?
- How do I connect the subwoofer wirelessly to a sound system?
- Can I connect the T 10 Mk2 subwoofer by cable?
- How does the automatic power on/off function work?
- How do I correctly set gain, phase, and low pass?
- Why won’t the subwoofer connect wirelessly?
Where can I find the user manual?
You can find the user manual at teufelaudio.com/operating-instructions. It’s best to use the search field there.
Where can I find the technical specifications?
The technical specifications for the subwoofer can be found on the product page [LINK to be added] in our webshop.
What is the difference compared to the T 10 subwoofer (previous model)?
| Category | T 10 Subwoofer (Previous Model) | T 10 Mk2 Subwoofer (New Model) | Advantage |
|---|---|---|---|
| Dimensions | 35.1 × 48.3 × 38 cm | 34.1 × 45 × 38 cm | More compact enclosure |

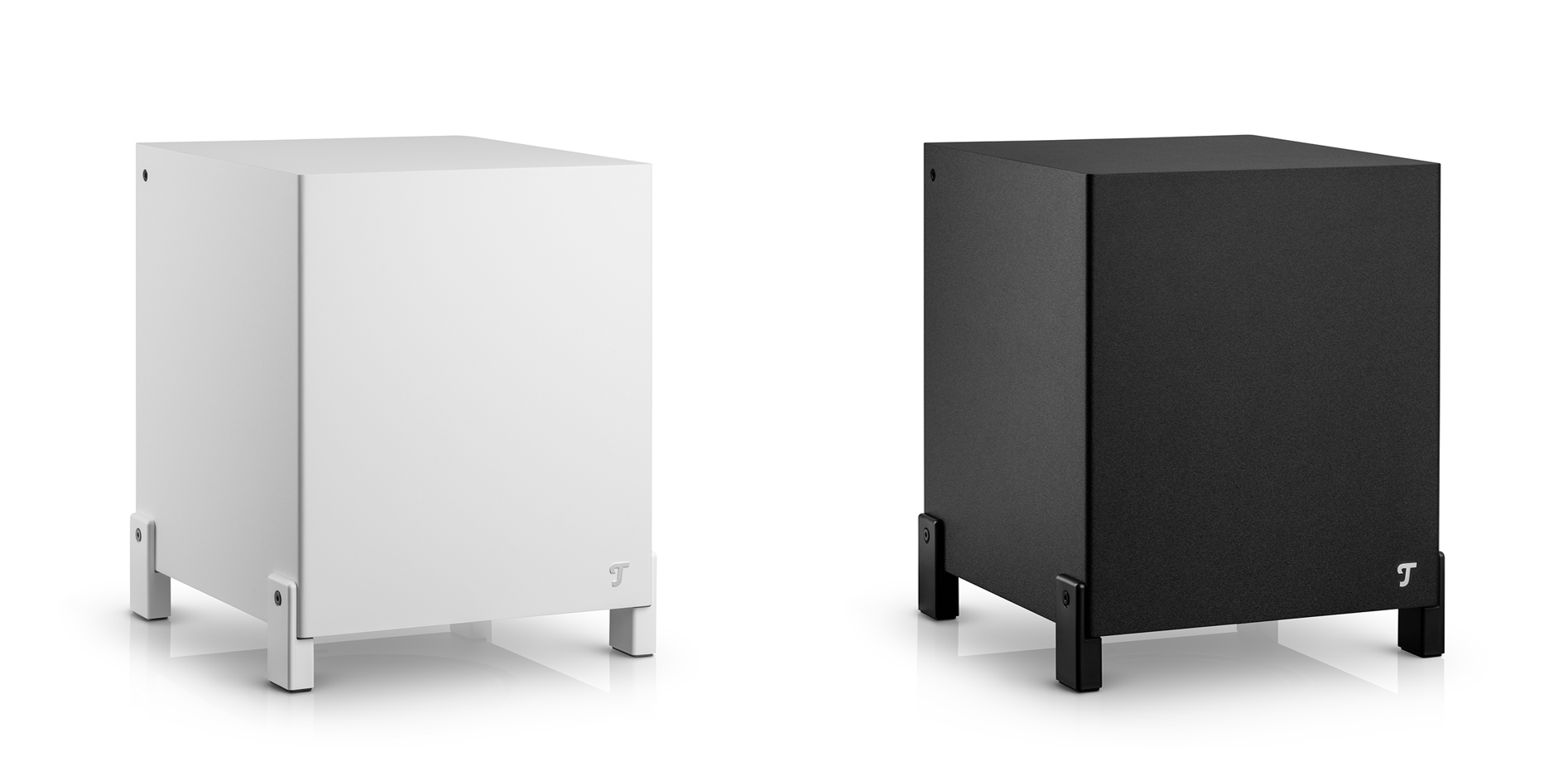

| Enclosure Color | Black | Black & White | More options for different environments |
| Material | – | FSC-certified wood | More sustainable |
| Frequency Response (-3 dB) | 33 Hz | 31 Hz | Deeper bass |
| Bass Reflex Port | Standard | New bass port | Less port noise |
| Gain Control | -10 dB to +10 dB | -15 dB to +15 dB | Larger adjustment range |
| Low-Pass Filter | Not adjustable | Adjustable | More flexible integration |
| Power Cable | Fixed | Detachable | Easier installation and maintenance |
| Power-Off Function | No | Yes | Energy saving |
Plug Detection (Automatic Input Detection) |
No. Switching between wired and wireless operation is manual |
Yes. Automatic switch to wired mode as soon as a cable is connected |
Easier operation |

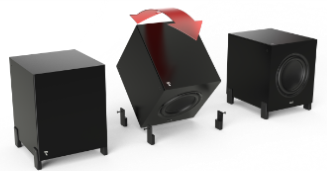

What is the difference between down-firing and front-firing operation?
With which products can I wirelessly connect the T 10 Mk2 subwoofer?
If you want to wirelessly connect the T 10 MK2 subwoofer to an AV receiver or stereo receiver, you need the Subwoofer Wireless Transmitter. Alternatively, in this case, a connection via subwoofer cable is also possible.
How do I connect the subwoofer wirelessly to a sound system?
The connection between your sound system (soundbar, active speaker, AV receiver, or the Subwoofer Wireless Transmitter) and the T 10 Mk2 subwoofer is made via Teufel’s integrated radio technology and not via Bluetooth.
Here’s how to establish a wireless connection:
- Make sure no cable is connected to SUB IN on the T 10 Mk2 subwoofer.
- Turn on your sound system and start the pairing process. How exactly to do this can be found in your device’s user manual.
- Turn on your T 10 MK2 subwoofer.

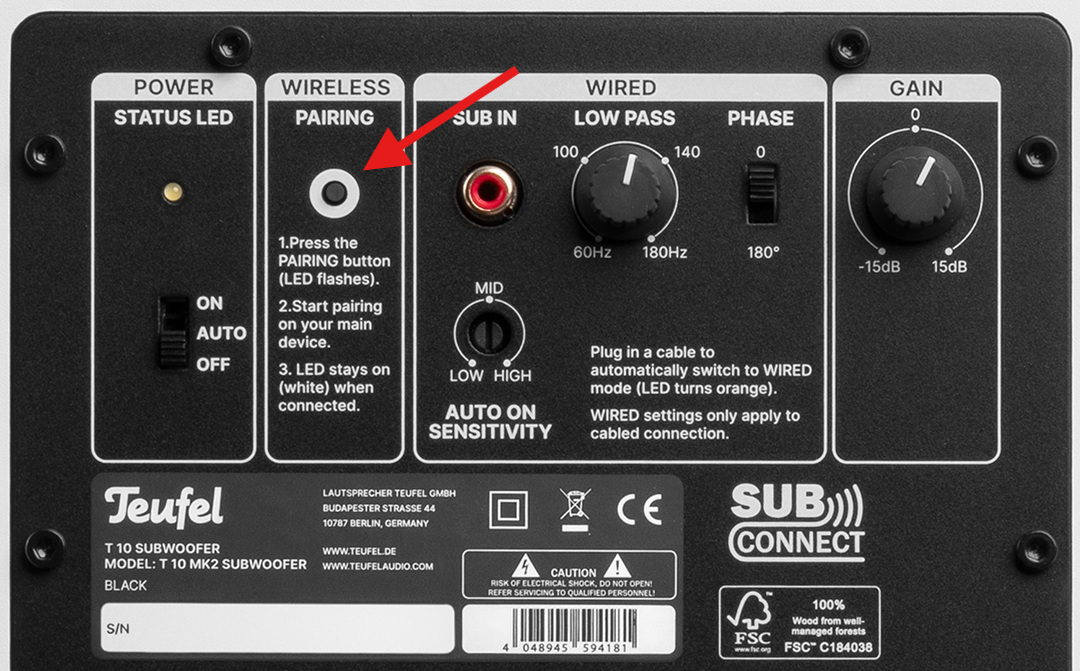

- Start the pairing process on your T 10 MK2 subwoofer by pressing the "Pairing" button.
- The status LED will blink.
- Start the pairing process on your sound system. How exactly this works is described in your device’s user manual.
- Once both devices are successfully connected, the status LED will glow solid white.
Can I connect the T 10 Mk2 subwoofer by cable?
Yes. The T 10 Mk2 subwoofer has a SUB-IN input and can be connected via a mono RCA cable to an AV receiver or other compatible devices. Once a cable is detected, the subwoofer automatically switches to cable mode.
How does the automatic power on/off function work?
The T 10 Mk2 subwoofer has an AUTO mode. In this mode, the subwoofer automatically turns on as soon as an audio signal is detected.

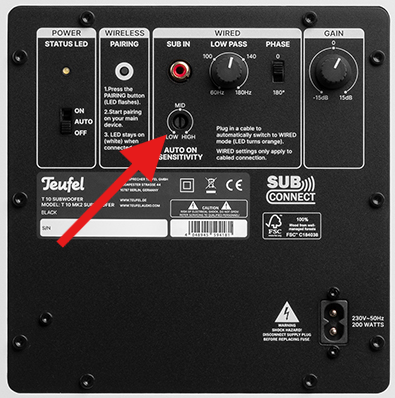

If no audio signal is received for about 20 minutes, the subwoofer automatically switches to standby mode. The sensitivity of the automatic power-on can be adjusted via the "AUTO ON SENSITIVITY" control.
Tip: If the subwoofer does not reliably switch on automatically, you can increase the sensitivity using the "AUTO ON SENSITIVITY" control.

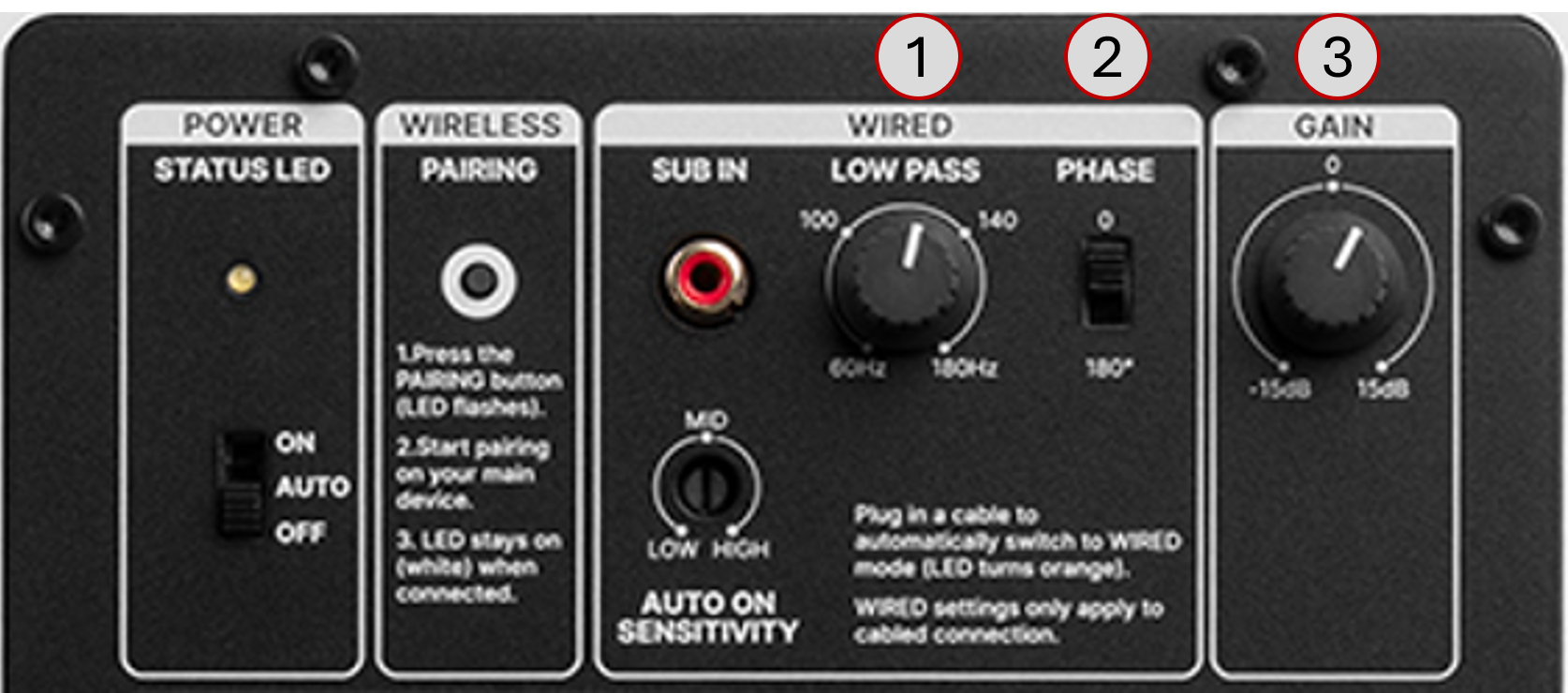

How do I correctly set gain, phase, and low pass?
- With the Low Pass control, you set the highest frequency the subwoofer should reproduce. This allows you to adjust the bass playback to your speakers. If the value is set too high, the frequency ranges of speakers and subwoofer can overlap. If it is set too low, bass may be lost.
- With the Phase switch, you adjust the phase of the subwoofer to align bass playback with the other speakers. First, set the phase switch to 0°. Then listen to a music track or movie scene with strong bass and switch to 180°. Keep the setting where the bass sounds fuller, stronger, and more even at your listening position.
- With the Gain control, you set the volume of the subwoofer. Increase the value if the bass sounds too quiet, and decrease it if the bass is too dominant or boomy.
More information can be found here: How to properly set up the subwoofer
Why won’t the subwoofer connect wirelessly?
Please check the following possible causes:
- Has the pairing mode been activated on both devices (subwoofer and sound system)?
→ Restart the pairing process on both devices. - Is an RCA cable plugged into the SUB-IN input?
→ Remove the cable. Reason: The T 10 Mk2 automatically switches to cable mode as soon as an RCA cable is connected and disables the wireless module. - Are other radio sources such as Wi-Fi routers, cordless phones, or microwaves interfering with the connection?
→ Increase the distance from possible interference sources and try pairing again.
If the subwoofer still does not work, please refer to the guide The subwoofer does not play – what can I do?.
