Contents
- Where can I find the user manual?
- Which devices can I connect to my CINEBAR ULTIMA?
- Can I expand my CINEBAR ULTIMA with additional speakers/subwoofer?
- Where can I find support for the HDMI connection between soundbar and TV?
- How do I reset the Cinebar Ultima?
Where can I find the user manual?
You can find the user manual at https://lu.teufelaudio.com/operating-instructions. Use the search field.
Which devices can I connect to my CINEBAR ULTIMA?

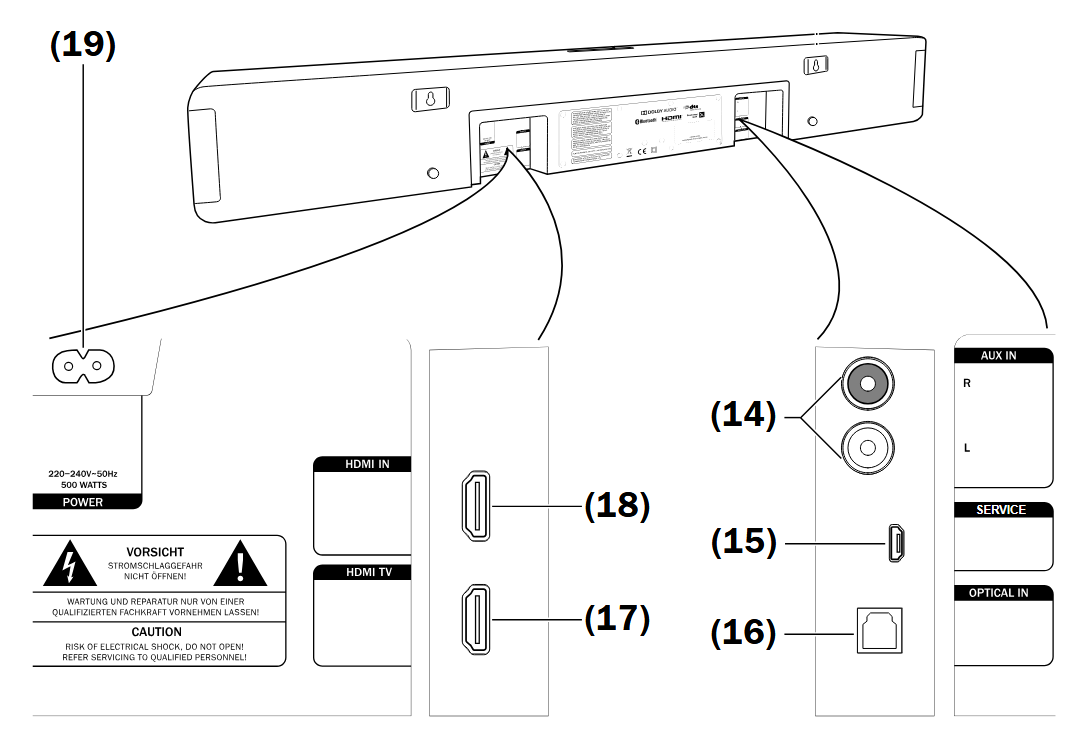

- AUX input (14): A CD player or similar can be connected to the soundbar via a standard RCA cable.
- USB (15): The CINEBAR ULTIMA has an integrated USB sound card for audio output from a PC.
- OPTICAL IN (16): optical-digital input source or coaxial; these are used to connect players, TV receivers, or TV sets.
- HDMI TV (17): HDMI connection for TV devices
- HDMI IN (18): HDMI connection
- Bluetooth: enables wireless transmission of audio signals from your smartphone or tablet.
Can I upgrade my CINEBAR ULTIMA with additional speakers/subwoofer?
You can upgrade your CINEBAR ULTIMA with a subwoofer and/or additional rear speakers.
Note: The CINEBAR ULTIMA already plays so deep on its own that a subwoofer only provides minimal improvement.
How do I connect the subwoofer to the soundbar?
Note: The CINEBAR ULTIMA already plays so deep on its own that a subwoofer only provides minimal improvement. If you want to connect a subwoofer, it is best to use the T 10 Subwoofer.

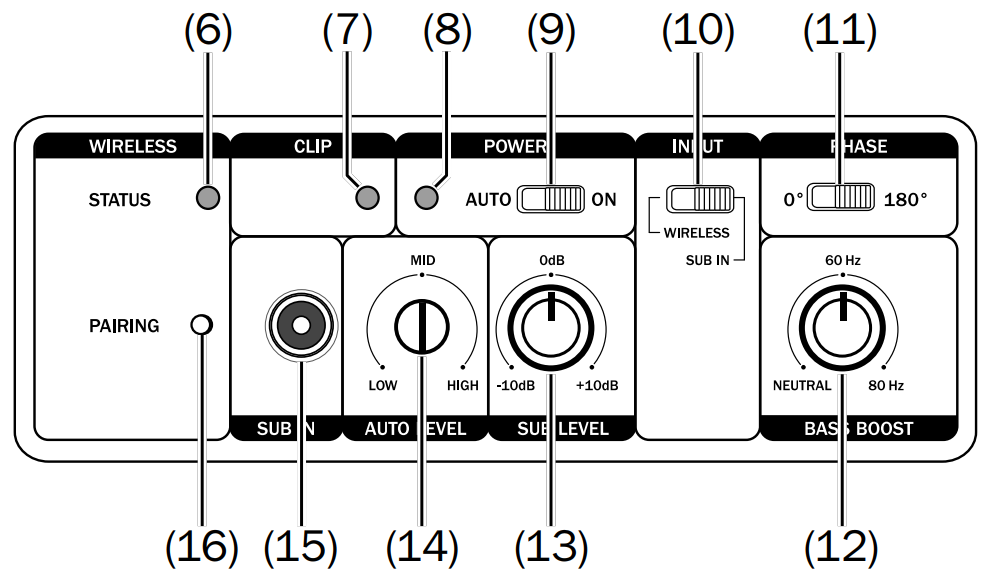

- Slide the INPUT switch (10) to the "WIRELESS" position.
- Turn on your subwoofer. Press and hold the PAIRING button (16) until the STATUS LED (6) blinks rapidly.
- Turn on your CINEBAR ULTIMA and put it into pairing mode. Go to the menu > "Speakers - Speaker" > "Ext.Sub – External Subwoofer" and then select "Pair".
- When the two devices have connected, the STATUS LED on the T 10 Subwoofer lights up steadily.
How do I connect my EFFEKT speakers to the soundbar?
The connection is not via Bluetooth but via radio.
For this, you need to select the corresponding menu item on your soundbar (e.g., WIRELESS on the CINEBAR PRO) and then press the pairing button on the back of the EFFEKT. Further information can also be found in the respective user manual.

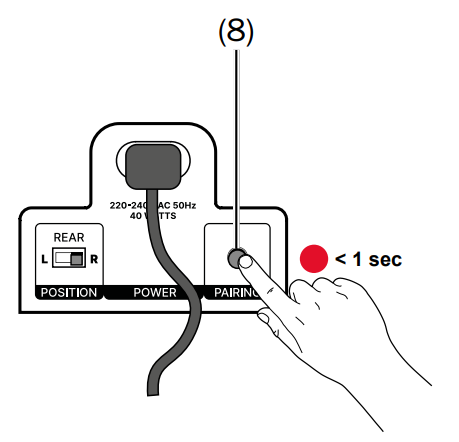

- Press and hold the PAIRING button (8) until the operation indicator on the back flashes rapidly white
- Turn on your CINEBAR ULTIMA and put it into pairing mode. Go to the menu > "Speakers - Speaker" > "Rears" and then select "Pair".
- Once the Effekt 2 and the CINEBAR ULTIMA are successfully connected, the operation indicator on the back lights up continuously white and then dims.
Where can I find support for the HDMI connection between soundbar and TV?
The following links will assist you with the connection via HDMI:
- Setup guide HDMI: Connect soundbar/sounddeck to the TV via HDMI
- Blog > I need help with HDMI cabling.
How do I reset the Cinebar Ultima?
Using the “Reset” function, you can reset individual settings or the entire Cinebar Ultima to the factory settings.
The following options are available:
- BT: Deletes the list of all saved Bluetooth® devices.
- Wireless: Deletes the list of all paired wireless speakers (rear speakers and subwoofers).
- Factory: Resets all settings to the factory settings.
After selecting an option, the prompt “Reset?” appears. Confirm the reset with the OK button or cancel the process with the Back button.
Note: After a factory reset, the Cinebar Ultima automatically switches to standby mode and then behaves as it did when it was first switched on.
What do I need to do after a factory reset?
- Turn on the Cinebar Ultima.
- “Select language/Wähle Sprache” appears on the display.
- Use the + or – buttons to select the desired language (German or English).
- Confirm your selection with the OK button.
- The message “READY TO TURN UP!” then appears.
The Cinebar Ultima is ready for use again. If you previously used Bluetooth® devices or wireless speakers, you may need to pair them again.
